C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

Brand Name : Xinmeiteng

Model Number : C618

Certification : CE ISO

Place of Origin : Original Qingdao China

MOQ : 1 set

Price : FOB UUSD 75000 - 80000

Payment Terms : L/C,T/T

Supply Ability : 1 set per month

Delivery Time : 70 workdays

Packaging Details : pvc stretch film EPE Pearl Cotton Packaging film Wooden Packaging Suitable for container shipping

Contact Now

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand surface Platform and Air Absorption

This machine is designed with a gear ring structure and a frequency conversion drive system, which ensures smooth operation and low noise levels. The knife holder plate and wheels are made from high-strength alloy steel with a hardness rating of HRC60 or above, providing excellent durability and wear resistance. The band knife can be adjusted using an automatic push feeding knife system, and the knife holder plate includes both a pushing knife and a grinding device, allowing for both automatic and manual operation modes. The anti-slip sand work table features suction capabilities, which enhance cutting precision when used with high-end round table carousel cutters, and also permit cutting of harder materials.

Overview

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

Worktable diameter φ7200mm
Cutting size 2000*2000*1300mm(One time 4 blocks cut available)
3000*2000*1300mm(One time 3 blocks cut available)
Cutting thickness 1-300mm
Cutting density Original sponge within 70 density
Rebond sponge within 160 density
Cutting hardness Within 100°
Cutting tolerance 1-5mm±0.1mm ; 30-50mm±0.5mm
Worktable rotation speed 0-5 rpm
Motor power 42.5kw
Machine weight 12T
Machine overall dimension 9000*7200*4200mm

The precision of the cutting process is further enhanced by the machine's high-accuracy positioning system, ensuring every cut meets the strictest standards. The cutting area is fully enclosed, safeguarding operators from potential hazards and maintaining a clean working environment. Additionally, the machine is equipped with an intelligent control system that allows for easy setting and adjustment of cutting parameters, enhancing operational convenience and efficiency. The overall design of this high-end automatic cutting machine showcases advanced technology and craftsmanship, making it an ideal choice for various cutting applications in industries such as furniture manufacturing, automotive parts production, and more.


In response to the issue of previous Chinese same-category models being unable to cut hard sponge, this machine can perform high-speed, stable cutting with high precision, completing the simultaneous cutting of a large number of sponge blocks at once.

Equipped with a horizontal band knife, this high-end automatic cutting machine operates continuously, ensuring efficient and seamless production processes. The machine's advanced design allows it to handle a wide range of materials, including those that were previously challenging for similar models in the Chinese market, such as hard sponge. With its high-speed and stable cutting capabilities, it achieves high precision in every cut, making it possible to process a large number of sponge blocks simultaneously. This feature significantly boosts productivity and reduces labor costs, making it an invaluable asset for businesses in the furniture manufacturing, automotive parts production, and other related industries.

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

CONFIGURATION

Ball screw : Taiwan Hiwin


Bearing : Japan NSK or Sweden SKF


Pneumatic components : Taiwan Airtac


Siemens touchscreen + Siemens PLC + Siemens servo motor or Delta


Worktable : sand paper surface vacuum suction


Linear guide : Taiwan hiwin or Japan THK

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

Electric+Automatic When cutting with the roller , the gantry descends and the pressure roller automatically rises.


C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

Auto knife grinding,wheel auto cleaning,with fireproof dust collector

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

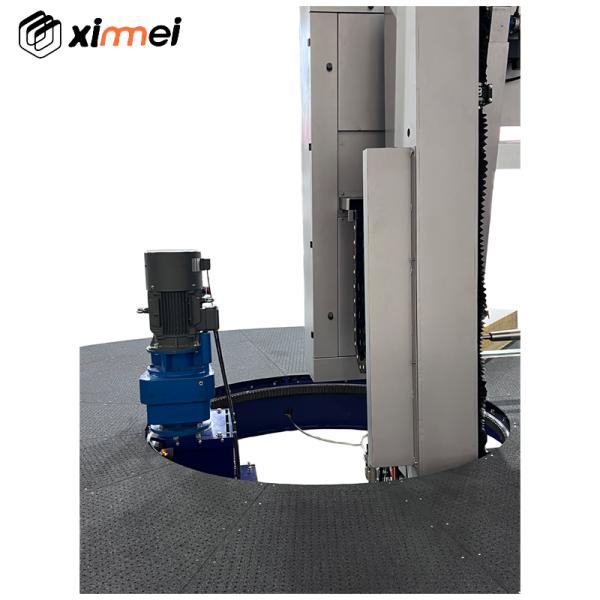

Gear ring structure


Shipping

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

Successful Project

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand

FAQ


・The brand name of this machine is Xinmei.

・The model number of this machine is C517 manufactured in Qingdao, China.

・The payment terms for this machine are TT and L/C.

・The delivery time for this machine is 80 days after receiving the agreed deposit.

Packaging Solutions Overview

We offer a range of packaging solutions including:

  • Plywood Boxes
  • PVC Stretch Film
  • EPE Pearl Cotton Film

Our packaging is specifically designed to be suitable for container shipping, ensuring your products are well-protected during transit.

Installation and Support

We provide comprehensive guidance for installation and commissioning. Should you require local assistance, we are available to help without any issues.

Our Commitment

We adhere to the principles of:

  • Quality First
  • Reasonable Pricing
  • After-Sales Warranty

Consultation services

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand


Your visit will definitely provide valuable insights. If given the opportunity, I would love to listen to your insights. Thank you for your proposal!

C-618 High-End Round Worktable Carousel Horizontal Band Knife cutting Machine and Quiet Operation PU Foam blocks Cutting Machine with Anti-Skid Sand
